AM160-YYH860
AM160-YYH860 is the ⌀16 mm high-spec member of the AM160 360° fingerprint module family — 1,000 templates, 0.3 s match, −40~85°C and a UART host interface, quoted at MOQ 1 pc with a free SDK and 48h FAE support. This is the module the family page sends home in their locksets.
Key specifications
| Function | 360° fingerprint enrollment and 1:1 / 1:N verification on module |
|---|---|
| Capture type | ⌀16 mm class, 360° rotation-tolerant capture |
| Match speed | 0.3 s |
| Template capacity | 1,000 |
| Host interface | UART |
| Target applications | Smart locks, high-end locksets, attendance terminal front-ends |
| Marking | AM160-YYH860 (⌀16 mm, 1,000-template high-spec) |
Full specification
| Parameter | Value | Note |
|---|---|---|
| Product family | AM160-series 360° fingerprint module | ⌀14–16 mm family |
| Capture diameter | ⌀16 mm | High-spec member |
| Match speed | 0.3 s | Family class |
| Template capacity | 1,000 | Full family allocation |
| Rotation tolerance | 360° capture | Family class |
| Host interface | UART | SDK examples included |
| Operating temperature | −40~85°C | Family fixture |
| Liveness | Semiconductor-based checks | Family class |
| Volume lead time | 10–25 days, orders under 5,000 units | Company standard |
| Warranty | 2 years | From first unit |
Actual door-side flush height and aperture are per your housing — the FAE team signs off the mechanical interface within 48h.

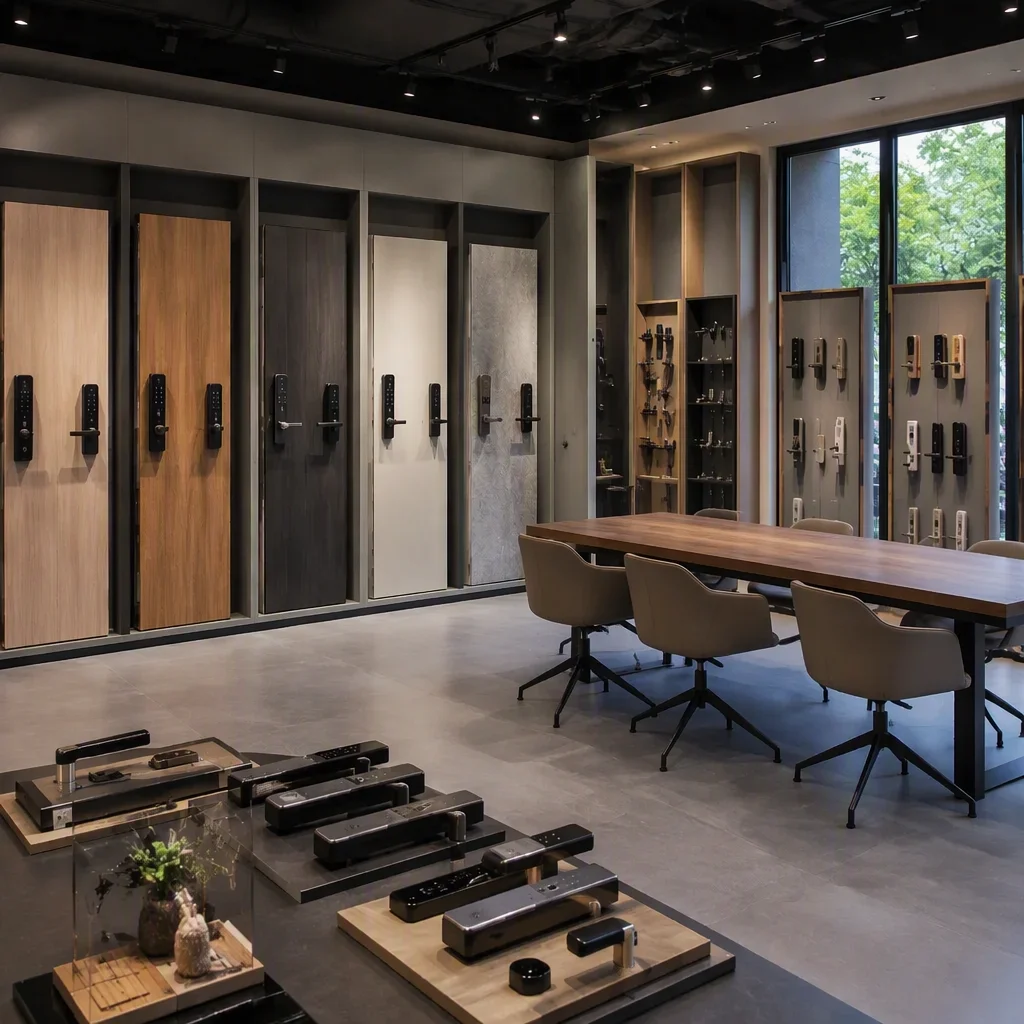

The specs a demo door needs.
Smart-lock OEMs shipped over 45 M units in 2025 and China held about 55% of output — a flagship lock at a demo door lives or dies in the hand: unlock from any angle, in one motion, every time. That is the ⌀16 mm high-spec argument:
- 360° rotation-tolerant capture means the thumb fights the keypad, not the sensor.
- 0.3 s match is fast enough to feel instant; 1,000 templates covers full building programs.
- −40~85°C rating keeps the flagship true from warmed showrooms to a north-facing porch.
The roster term borrowed for clocks.
Attendance integrators wrap the same module into desk clocks and wall units: enrollment quality arrives from the lock world, and the aggregate data feeds HR without recruiting IT's help.
- 1:1 template export keeps multi-site rosters in one master file (SDK).
- Buddy punching affects about 75% of U.S. employers and costs 3–5% of payroll at a typical 50-person firm — a fingerprint clock deletes the swap.
- Free SDK and 48h FAE response at both integration and field level.
AM160-YYH860 FAQs
Yes — 1 pc is the MOQ; the SDK's 1:N demo loads a full roster set, and the FAE team confirms the host MCU budget within 48h.
The algorithm and SDK are free — registration, 1:1 verify and 1:N search demos are all included for the UART path.
The datasheet values are measured at nominal conditions; the SDK exposes threshold tuning and the FAE team recommends settings for field dirt levels within 48h.
Build the demo door around the ⌀16 mm spec.
Send the lock concept — get the YYH860 datasheet, SDK package and 1-pc offer on the 48h FAE response.
