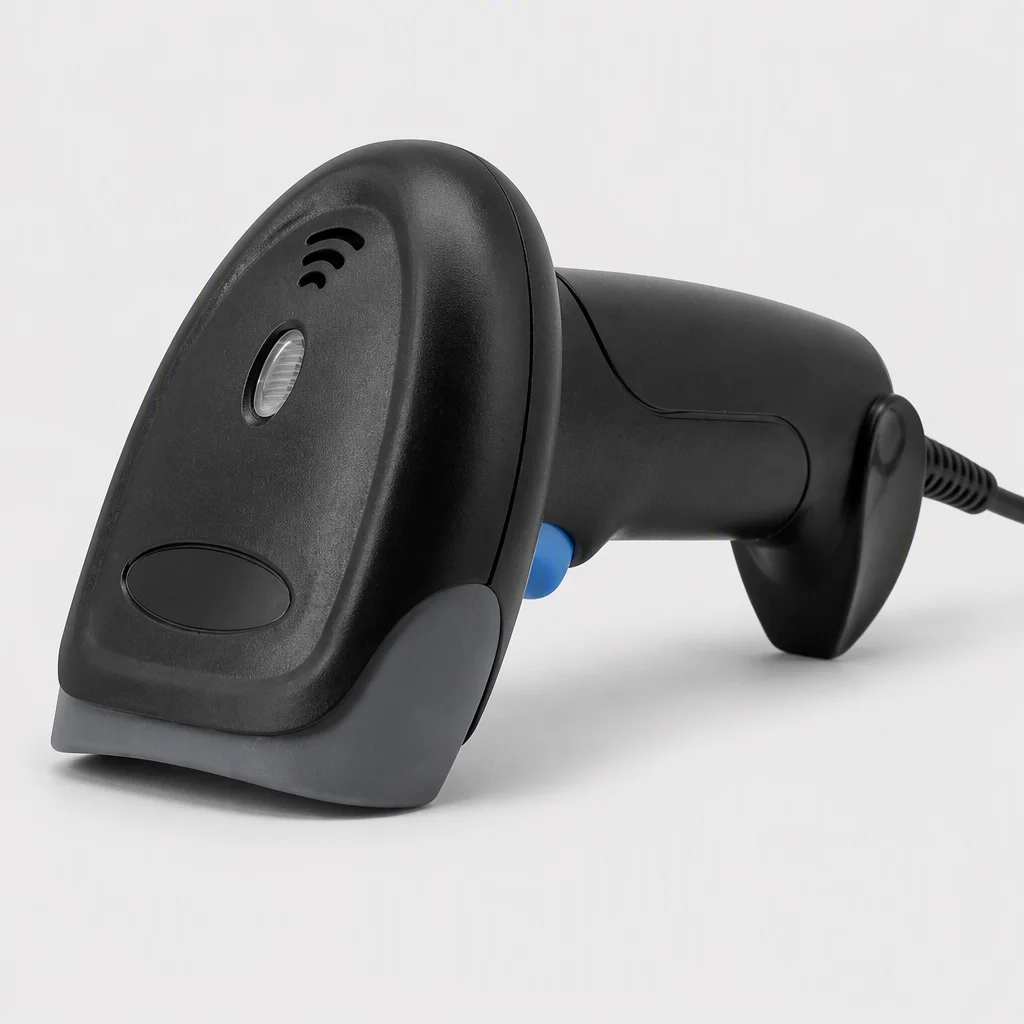

U28
The U28 is the family-performer 2D imager of the U series — the reference-duty 2D unit for retail ops where the label mix never stops changing and the register budget has a ceiling.
Key specifications
| Function | Reference-duty 2D capture for evolving retail label mixes |
|---|---|
| Imaging engine | CMOS imager, 0.5–0.75 MP class (family standard) |
| Symbologies | All 1D plus QR, DataMatrix, PDF417, Aztec, China Post codes |
| Precision | 4 mil minimum element width class |
| Read range | 0–80 cm class (family-class value) |
| Host interfaces | USB HID / CDC, RS232 |
| Duty tuning | Performer profile — sustained trigger work across the store day |
| Target applications | Store back counters, c-store registers, transfer-desk capture |
Full specification
| Parameter | Value | Note |
|---|---|---|
| Product family | EMS Biometric U-series handheld 2D | Performer tier |
| Imaging sensor | CMOS, 0.5–0.75 MP class | Family-standard pixel count |
| Resolution | 4 mil class | Per-model in datasheet |
| Symbologies | EAN/UPC, Code 39/93/128, GS1-128, ITF-14, Codabar, QR, DataMatrix, PDF417, Aztec, China Post codes | Full 2D set |
| Read range | 0–80 cm class | Family-class; per-model curve in datasheet |
| Host interfaces | USB + RS232 | Both standard |
| Wireless | Wired unit | See V12 for cordless premium |
| Operating temperature | Indoor commercial class | See W-series for industrial range |
| Supply terms | MOQ 1 pc · sample 1–3 days · production 10–25 days (under 5,000 pcs) | EMS standard terms |
| Customization | Logo silk-screen, packaging, cable marking per project | OEM order-based |
| Warranty | 2 years | From first unit |
Family-class values shown — exact per-model figures in the datasheet; the FAE team verifies counter-side mixes within 48h.
The back counter passes the test nobody budgets for.
Transfers, damages, supplier returns: every store has a back counter doing the paperwork the lanes never see. It is the station where label mix changes most — scratch digital, GS1-128 supplier packing tickets, tiny COD barcodes on return slips. That is performer territory, and the U28 is the family's reference unit for it:
- The counter that reads everything twice a day — the full 2D set plus dense 1D absorbs the rotating cast of labels a transfer desk sees in a week, no app swap, no second gun.
- Returns become data, not arguments — printed COD formats and repack slips decode on the first trigger, so the desk answers vendors with numbers instead of photos.
- Performer duty, standard price line — the same MOQ 1 pc and 2-year warranty as the entry tier, with the FAE 48h line for the store's exception formats.
U28 FAQs
It is the reference-duty 2D unit: full symbology set and sustained-trigger tuning at the mid price band — the number most departments use as their standardization target.
Credit-note sticker formats are typically within the 4 mil class; one sample against your vendor's sticker print quality settles whether they are readable or a reissue case.
Pricing is by quote to your volume, MOQ 1 pc; mixing tiers in one fleet is supported and common — the FAE team structures the configuration so both behave consistently at your desks.
Let an engineer verify your U28 counters.
Send your label registry and volumes — get a tier recommendation, updated datasheet and mixed-fleet offer within 48h.
