W10
The W10 is the 2D industrial scanner of the W-series rugged family — the everyday drop-resistant spec for stores that feed an unmanned network from a working back dock rather than a showroom floor.
Key specifications
| Function | Everyday rugged 2D capture for working docks and back rooms |
|---|---|
| Imaging engine | CMOS imager, 0.5–0.75 MP class (family standard) |
| Symbologies | All 1D plus QR, DataMatrix, PDF417, Aztec, China Post codes |
| Precision | 4 mil minimum element width class |
| Read range | 0–80 cm class (family-class value) |
| Housing | Rugged shell — rugged-family standard; per-model ratings in datasheet |
| Host interfaces | USB HID / CDC, RS232 |
| Target applications | Back docks, restock tables, cage-picking and receiving lanes |
Full specification
| Parameter | Value | Note |
|---|---|---|
| Product family | EMS Biometric W-series industrial 2D | Rugged family |
| Imaging sensor | CMOS, 0.5–0.75 MP class | Family-standard pixel count |
| Resolution | 4 mil class | Per-model in datasheet |
| Symbologies | EAN/UPC, Code 39/93/128, GS1-128, ITF-14, Codabar, QR, DataMatrix, PDF417, Aztec, China Post codes | Full 2D set |
| Read range | 0–80 cm class | Family-class; per-model curve in datasheet |
| Housing | Rugged shell | Per-model drop and ingress ratings in datasheet |
| Operating temperature | Industrial temperature-class design | Wider than commercial units; per-model limits |
| Host interfaces | USB + RS232 | Both standard |

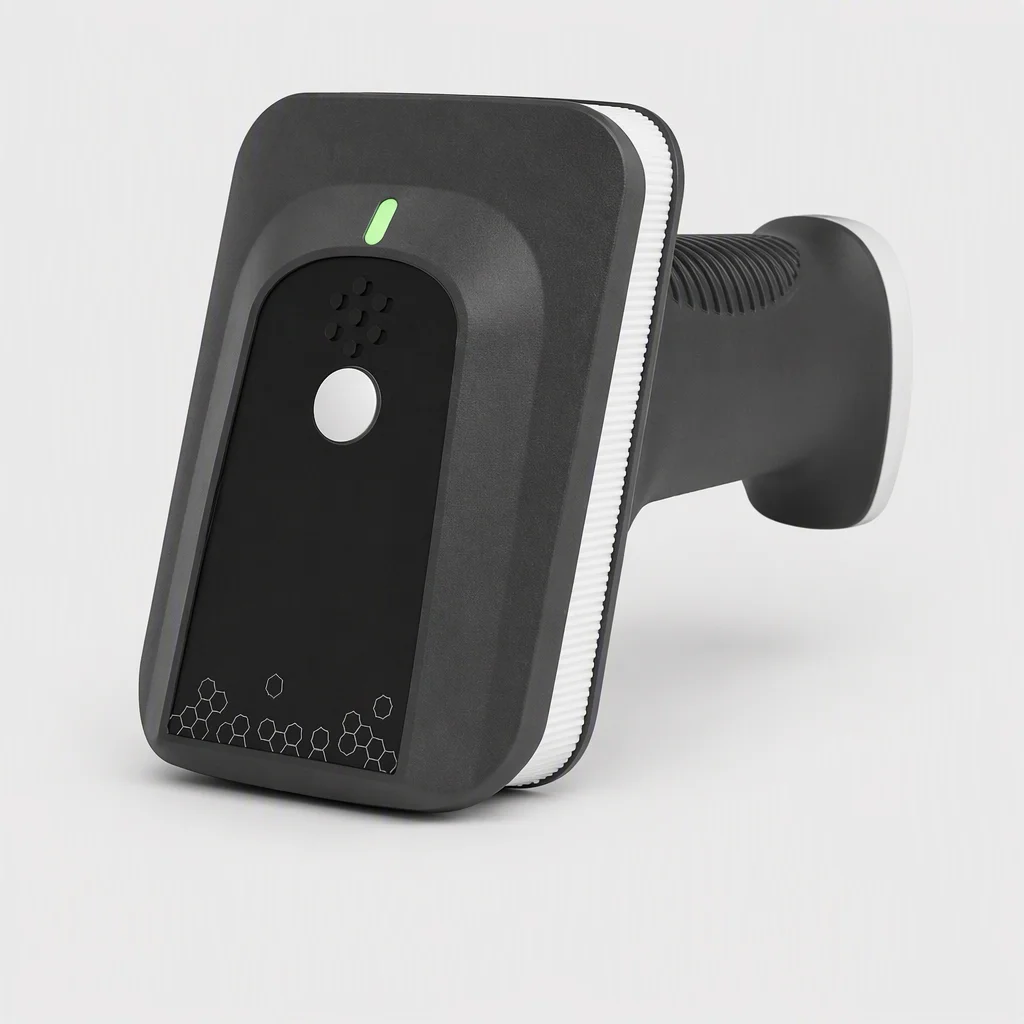

| Wireless | Wired unit | Cordless is W10T-family sibling or W11W |
| Supply terms | MOQ 1 pc · sample 1–3 days · production 10–25 days (under 5,000 pcs) | EMS standard terms |
| Warranty | 2 years | From first unit |
Family-class values shown — exact per-model figures in the datasheet; the FAE team verifies dock-side duty within 48h.
The storefront is the product; the back dock is the business.
An unmanned store wins on the shop floor and loses in the loading bay: deliveries arrive when the store tech is moving shelf stock, and the label check happens on a steel table with a dock door open. The W10 is the rugged-family 2D that treats that table as real working surface — the kind of dock where a gorilla-armed drop onto concrete is a Tuesday:
- Rugged from the first unbox — the family shell is graded for the drop profile of a working dock, and the per-model ratings are printed in the datasheet so your store lead knows the real limit.
- Receiving without a second trip — supplier 2D and the older EAN on the same unit means the receipt log closes one pass over the carton pile, not two.
- A tech crew's spare logic — MOQ 1 pc means the pilot dock gets one; 2 years of warranty means the fleet decision waits for evidence, not persuasion.
W10 FAQs
W10 is the rugged family's everyday workhorse: shell and duty between the standard industrial W2 and the premium W12. It is the tier most working docks settle on after the brother test.
Typical invoice-pastor 2D formats are within scope at the 4 mil class; very small print on cheap invoice stock is one sample-test away — send it with the FAE note.
Accessory sets are orderable per program (hooks, cradles, cables); the 48h FAE contact confirms the mounting against your dock's rail geometry.
Let an engineer verify your W10 docks.
Send your receiving flow and dock conditions — get a duty plan, updated datasheet and sample offer within 48h.
