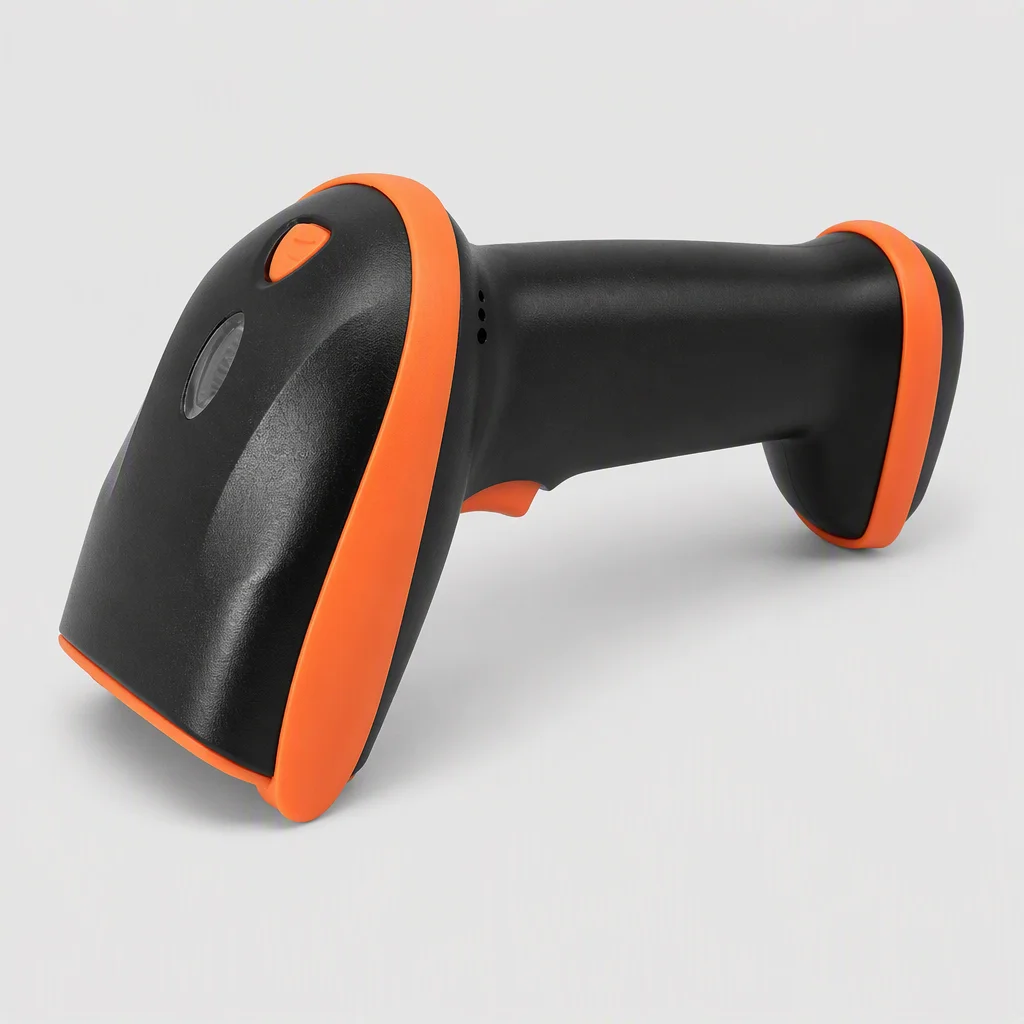

V1C
The V1C is the base 1D CCD scanner of the V series — the red-light version of the V1, for desks and sorting stations that want the V look plus the crumpled-paper tolerance of CCD.
Key specifications
| Function | Base CCD capture with tolerance for worn and crumpled paper |
|---|---|
| Scan engine | 1,500-pixel linear CCD, red illumination (family standard) |
| Symbologies | EAN/UPC, Code 39/93/128, GS1-128, ITF-14, Codabar, China Post codes |
| Precision | 4 mil minimum element width class |
| Read range | 0–80 cm class (family-class value) |
| Host interfaces | USB HID / CDC, RS232 |
| Label tolerance | CCD-friendly on scuffed surfaces — the red-line base position |
| Target applications | Paper-heavy desks, return stations, archive reads |
Full specification
| Parameter | Value | Note |
|---|---|---|
| Product family | EMS Biometric V-series handheld CCD | Base tier |
| Capture sensor | 1,500-pixel CCD line | Family-standard; exact pitch in datasheet |
| Resolution | 4 mil class | Per-model in datasheet |
| Symbologies | EAN/UPC, Code 39/93/128, GS1-128, ITF-14, Codabar, China Post codes | Dense 1D set |
| Read range | 0–80 cm class | Family-class; per-model curve on request |
| Host interfaces | USB + RS232 | Both standard |
| Light source | Red LED (CCD) | No laser classing |
| Operating temperature | Indoor commercial class | See W-series for industrial range |
| Supply terms | MOQ 1 pc · sample 1–3 days · production 10–25 days (under 5,000 pcs) | EMS standard terms |
| Warranty | 2 years | From first unit |
Family-class values shown — exact per-model figures in the datasheet; the FAE team verifies worn-label reads within 48h.
Waybills get old before the van leaves.
Dispatch desks live on paper that has been handled twice: waybills printed in the morning, folded in a pocket, unraveled at the desk by 4pm. The V1C is the base CCD we seat at those desks — the red line reads the warped paper, and the V-series styling keeps the fleet looking like one product family:
- Paper that fought the courier, not you — crumpled and corner-folded waybill labels read at the 4 mil class, which is the difference between logging the load and collecting evidence on the load.
- No laser paperwork at the desk — CCD means an uncomplicated desk policy, which frees the dispatch lead to focus on the lane plan instead of the documentation.
- Family consistency on the desk shelf — the same V-line styling as the rest of your fleet, one part number family, one spares plan; MOQ 1 pc keeps the desk tested without a commitment.
V1C FAQs
Worn-label tolerance: CCD reads crumpled, scuffed carbon-printed paper far better than a laser at close desk range; laser wins on reach, not on how many times the sheet was folded.
The matrix of the waybill label area reads at the 4 mil class where printed consistently; carbon-transfer sheets with faint gray digits are the borderline case you confirm with one sample.
Standard cable set documented in the datasheet; stand options are orderable per program and the 48h FAE line confirms your desk mount geometry.
Let an engineer verify your V1C desks.
Send your waybill samples and desk setup — get a wear-tolerance report, updated datasheet and sample offer within 48h.
